CD SERIES

CD SERIES

Used extensively in nuclear power plants where very exacting quality control is required.

[Casting Products]
A steel plate damper available with either round or square pipe connection ends. This non-return gravity damper is mainly used in nuclear power facilities for ventilation and air conditioner outlets as well as for transfer. It is equipped with an easily adjustable balance weight to balance the impeller blade gravity and operates reliably on even a slight pressure difference.

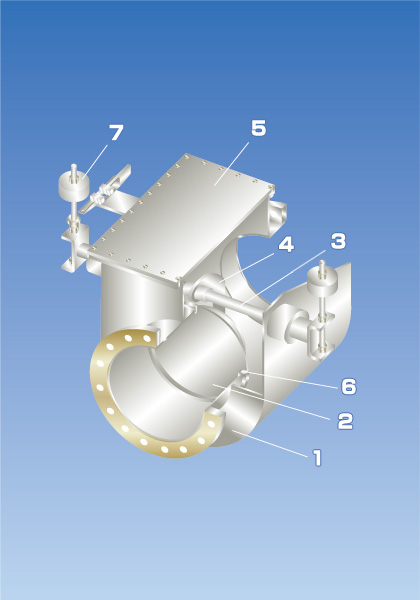

※Place the image's mouse over!

  1. Flange
  2. Disc
  3. Shaft
  4. Lever
  5. Bonnet
  6. Seat
  7. Counter weight

● Standard specifications

Size 100A~3000A
Working pressure ~0.05MPa
Working temperature ~150℃
Flanges JIS、ANSI、DIN、AS、BS、Special

● Standard materials( JIS code)

Body SS400、SUS304、SUS316、SUS316L
Disc SS400、SUS304、SUS316、SUS316L
Shaft SUS403、SUS304、SUS316、SUS316L

● Standard test pressure

Body shell Fluid pressure×1.5
